靜態傳遞箱

1. Product Overview

The Static Pass Box, also known as Static Transfer Window, is a material transfer device installed between clean and non-clean areas or between zones of different cleanliness levels. Unlike dynamic pass boxes that incorporate fans and filters, the Static Pass Box contains no powered devices and relies solely on physical isolation and interlocking mechanisms to achieve safe material transfer between areas of different cleanliness levels.

The Static Pass Box offers advantages including simple structure, low cost, easy maintenance, and noise-free operation. It is a fundamental material transfer device for cleanrooms and is widely used in pharmaceutical, biological laboratory, electronics manufacturing, and food processing industries.

2. Working Principle

The working principle of the Static Pass Box is based on two core mechanisms: physical isolation and interlock control.

第一，物理隔離。 傳遞箱外殼在物理上將兩個不同清潔度的區域隔開。 在正常情况下，兩扇門都保持關閉，形成物理屏障，防止兩側之間的直接空氣交換。

Second, Interlock Protection. An interlock device is installed between the two doors. When one door is opened, the opposite door is automatically locked and cannot be opened. This design ensures that only one door can be opened at any given time, effectively preventing cross-contamination through airflow.

Third, Material Transfer Process. The operator on the low-cleanliness side opens the outer door, places the material inside the chamber, and closes the outer door. The interlock then releases the lock on the opposite door. The operator on the high-cleanliness side opens the inner door, removes the material, and closes the inner door, completing one full transfer cycle.

Fourth, Seal Maintenance. When both doors are closed, the sealing device of the pass box ensures airtightness between the housing and doors, maintaining stable pressure differential between the two sides.

3. Product Structure and Components

The Static Pass Box consists of the following core components:

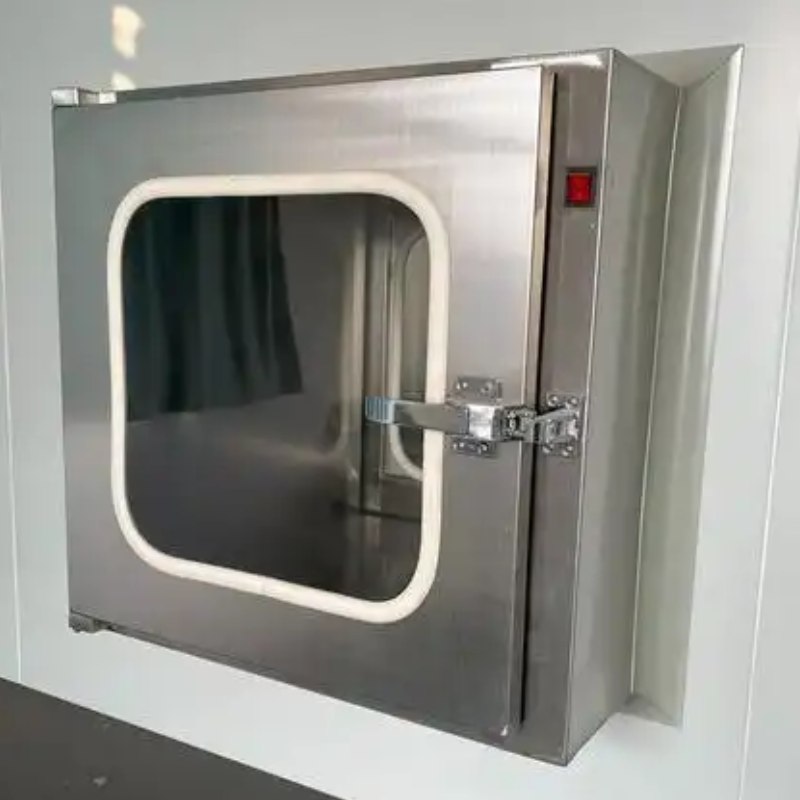

外殼：由優質不銹鋼板或冷軋鋼板製成，表面經過拉絲或塗層處理。 內表面光滑平整，便於清潔。 外殼結構堅固，密封性能良好。

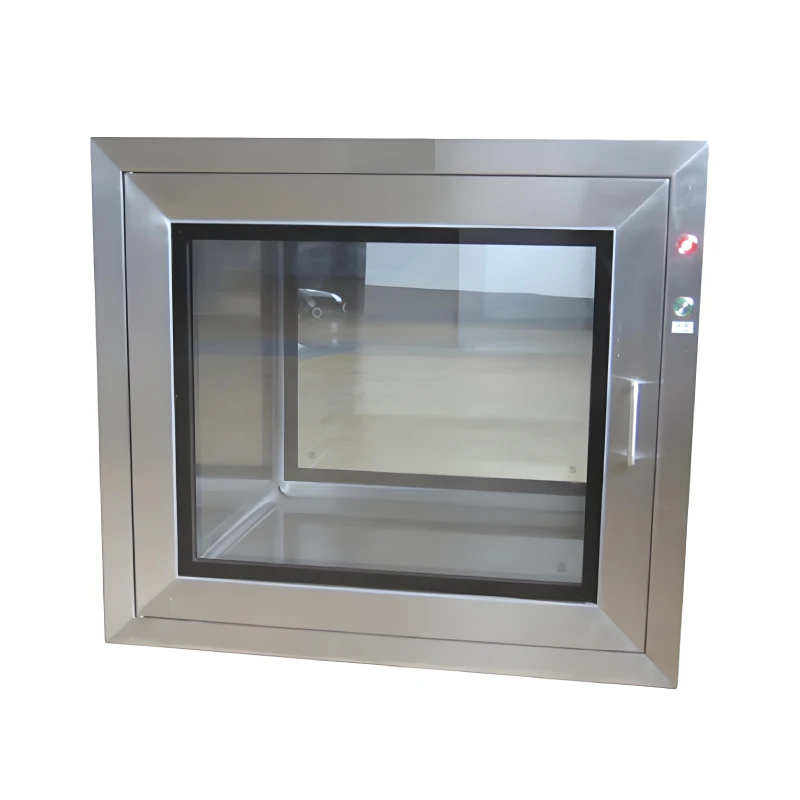

門：通常為雙層鋼化玻璃門或不銹鋼門，帶透明觀察窗，用於觀察內容物。 門通過鉸鏈連接到外殼，以實現平穩的打開和關閉。

Interlock Device: Includes mechanical interlock and electronic interlock. Mechanical interlock uses mechanical linkages to achieve door interlocking without power supply. Electronic interlock uses electromagnetic locks and control circuits requiring power supply, offering better reliability and safety.

Sealing Device: High-elasticity sealing gaskets or magnetic sealing strips installed on the door edges to ensure airtightness when doors are closed.

Work Surface: The interior bottom surface is a flat work surface, typically made of stainless steel for wear resistance and easy cleaning. Some models can be equipped with non-powered rollers for transferring heavier items.

Handle: Stainless steel handles installed on doors, meeting cleanroom hygiene requirements and providing easy operation.

Indicator Lights: Electronic interlock models typically feature status indicator lights showing door open/close status and interlock status.

Buzzer: Some models emit an audible alarm when a door remains open for an extended period, reminding operators to close the door.

Control Panel: Electronic interlock models are equipped with a simple control panel for controlling interlock logic and alarm settings.

4. Features and Advantages

第一，結構簡單。 靜態傳遞盒不包含風扇或篩檢程式等複雜組件。 該結構簡單可靠，故障率低。

Second, Cost Effective. With no power or filtration systems, the manufacturing and maintenance costs of Static Pass Boxes are significantly lower than dynamic pass boxes, making them suitable for budget-constrained projects.

Third, Noise-Free Operation. The Static Pass Box has no moving mechanical parts during operation, resulting in completely silent operation, suitable for noise-sensitive laboratories and medical facilities.

Fourth, Easy Maintenance. Daily maintenance is limited to cleaning interior and exterior surfaces and inspecting sealing gaskets. No filter replacement or fan maintenance is required, resulting in low maintenance workload.

Fifth, Flexible Installation. Static Pass Boxes are lightweight and compact, making installation easy. They can be installed on various wall types including sandwich panel walls, brick walls, and drywall.

Sixth, Energy Efficient. Static Pass Boxes require no power except for the electronic interlock (which consumes minimal electricity). This meets energy efficiency requirements.

第七，安全可靠。 聯鎖裝置確保兩扇門不能同時打開，有效防止交叉污染。 電子聯鎖型號還具有斷電保護功能，斷電時所有門都會自動鎖定。

Eighth, Highly Customizable. Dimensions, materials, interlock type, door style, and other features can be customized according to customer requirements to suit different application scenarios.

5. Technical Specifications (Standard)

Housing Material: 304 stainless steel or 316L stainless steel, or cold-rolled steel sheet with powder coating

門材質：不銹鋼門或雙層鋼化玻璃門（帶觀察窗）

Window Glass Thickness: 4 to 5 millimeters tempered glass

Interlock Type: Mechanical interlock or electronic interlock

Power Supply: Mechanical interlock requires no power; electronic interlock requires AC220V 50Hz

Standard Dimensions (Width × Depth × Height): Common sizes include 400×400×400mm, 500×500×500mm, 600×600×600mm, 600×600×800mm, 800×800×800mm, and non-standard custom sizes available

Work Surface: Stainless steel flat plate or non-powered rollers

Sealing Gasket: Silicone sealing gasket or EPDM sealing gasket

Surface Finish: Brushed finish or mirror polished

Operating Temperature: 0 to 40 degrees Celsius

工作濕度：相對濕度小於95%

安裝方式：嵌牆安裝

6. Product Classification

By Interlock Type: Mechanical Interlock Static Pass Box uses purely mechanical structure for interlocking, requires no power, suitable for locations without power supply or sensitive to electromagnetic interference. Electronic Interlock Static Pass Box uses electromagnetic locks and controllers for interlocking, offers fast response, high reliability, and alarm functions, suitable for GMP-compliant applications.

By Door Type: Stainless Steel Door Static Pass Box features all-stainless steel door structure, robust and durable, suitable for high-frequency use. Glass Door Static Pass Box features double-layer tempered glass door structure, high transparency for easy viewing of contents, suitable for applications requiring real-time visibility.

按材質：全不銹鋼靜態傳遞箱完全由304或316L不銹鋼製成，具有高度耐腐蝕性，適用於製藥和生物實驗室。 碳鋼粉末塗層靜態通道箱外殼由冷軋鋼製成，帶有粉末塗層，成本較低，適用於一般工業環境。

安裝方法：標準嵌入式靜電通盒安裝在牆上，與牆面齊平。 壁掛式靜態通行箱通過法蘭固定在牆面上，適用於薄壁或無法開大開口的位置。

按應用：標準靜態傳遞箱僅提供基本的傳輸和聯鎖功能。 紫外線靜態通行箱內寘紫外線消毒燈，用於物品的初始表面消毒。 Clean Static Pass Box內部經過特殊處理，表面光滑無死角，適用於更高的清潔度要求。

7. Application Areas

Static Pass Boxes are widely used in various locations with certain cleanliness requirements but without the need for complex purification functions.

Pharmaceutical Industry: Used for material transfer in non-sterile drug production workshops, API production workshops, packaging workshops, and between warehouses and production areas. Static Pass Boxes are suitable for material transfer between Grade C and Grade D clean areas and between clean and non-clean areas.

Biological Laboratories: Used for sample and reagent transfer in general biological laboratories, microbiology laboratories, and molecular biology laboratories. Static Pass Boxes can be used with UV sterilization lamps for initial surface disinfection.

Electronics Manufacturing: Used for material transfer in electronic component assembly workshops, PCB production workshops, and precision instrument assembly workshops. Static Pass Boxes prevent dust and particles from migrating between different areas.

Hospitals and Medical Facilities: Used for item transfer in general wards, outpatient treatment rooms, central sterile supply departments, and for medication transfer between pharmacies and nurse stations.

Food Processing: Used for material transfer between food packaging workshops, raw material preparation areas, and finished product warehouses, preventing pests and dust from entering production areas.

Cosmetics Production: Used for material transfer between cosmetics filling workshops, packaging workshops, and warehouses, maintaining sanitary conditions in production areas.

Printing and Packaging: Used for material transfer in printing workshops and laminating workshops with certain cleanliness requirements.

General Industry: Used for material transfer between general workshops and warehouses in electronics, machinery, chemical, and other industries, reducing dust and foreign matter entering production areas.

Research Institutions: Used for sample, reagent, and tool transfer in various research laboratories, reducing the impact of personnel entry and exit on experimental environments.

Data Centers: Used for equipment transfer between server rooms and maintenance corridors, reducing the impact of personnel entry and exit on the data center environment.

8. Comparison with Other Pass Boxes

Static Pass Box vs. Dynamic Pass Box: Static Pass Box has no fan or filter, relying on physical isolation and interlock for transfer. Dynamic Pass Box has built-in fan and filter with self-cleaning capability. Static Pass Box offers low cost, no noise, and maintenance-free operation. Dynamic Pass Box has higher cost, some noise, and requires regular filter replacement and fan maintenance. Static Pass Box is suitable for lower cleanliness requirements or items not sensitive to contamination. Dynamic Pass Box is suitable for aseptic transfer between high-grade clean areas.

Static Pass Box vs. VHP Pass Box: VHP Pass Box features vaporized hydrogen peroxide sterilization capability, achieving Log6 kill rate. Static Pass Box has no sterilization capability. VHP Pass Box is suitable for aseptic transfer with high cost and long cycle time. Static Pass Box is suitable for general clean item transfer with low cost and fast transfer speed.

Static Pass Box vs. UV Pass Box: UV Pass Box adds a UV sterilization lamp to the Static Pass Box design, providing surface disinfection of items. Static Pass Box relies solely on physical isolation. UV Pass Box is suitable for applications requiring initial disinfection of item surfaces. Static Pass Box is suitable for applications with no disinfection requirement or where items are pre-disinfected.

9.選擇指南

清潔度要求：根據傳遞箱兩側的清潔度差异選擇合適的產品。 對於沒有無菌要求的微小差异，靜態傳遞箱是合適的。 對於較大的差异或無菌要求，應選擇動態傳遞箱或VHP傳遞箱。

Item Characteristics: Determine the internal dimensions based on the size of items to be transferred. Consider the maximum length, width, and height of items, allowing appropriate clearance. For heavy items, consider selecting non-powered rollers.

Frequency of Use: For high-frequency use, electronic interlock type is recommended for fast response and high reliability. For low-frequency use, mechanical interlock type can be selected, requiring no power and offering lower cost.

安裝環境：確認牆體類型和厚度，選擇嵌入式或壁掛式安裝。 對於夾芯板牆，標準嵌入式安裝是合適的。 對於磚牆或混凝土牆，必須準備安裝開口。

資料要求：對於製藥和生物實驗室，建議使用全304或316L不銹鋼。 對於一般工業環境，粉末塗層碳鋼是合適的。

預算限制：當預算有限且清潔要求適中時，靜態傳遞箱是一種經濟合理的選擇。 電子聯鎖型比機械聯鎖型更昂貴。 不銹鋼材料比碳鋼資料貴。

Compliance Requirements: The pharmaceutical industry should select pass boxes that comply with GMP requirements, typically requiring material certificates and factory inspection reports.

Door Type: Choose glass door when real-time viewing of contents is needed. Choose stainless steel door when high durability is required.

10. Installation and Maintenance

Installation Key Points: Cut an opening in the wall according to the external dimensions of the pass box. Insert the pass box housing into the wall opening, ensuring it is level. Fill gaps between the housing and wall with sealing compound or sealing gaskets to ensure sealing. Secure the pass box to the wall using mounting screws or fixing flanges. For electronic interlock type, connect power supply and ground. Install the doors and adjust hinges for smooth opening and closing. Test interlock functionality.

Daily Maintenance: Clean interior and exterior surfaces and viewing windows daily using lint-free cloth and appropriate cleaning agents. Regularly inspect sealing gaskets for aging, damage, or deformation; replace if damaged. Regularly check door hinges for looseness and tighten screws. For mechanical interlock type, regularly check interlock mechanism for smooth operation and apply lubricant if necessary. For electronic interlock type, regularly check indicator lights and buzzer for proper operation; test power-off protection function. Check doors for smooth opening and closing; adjust if sticking occurs.

Filter Replacement: Static Pass Box has no filter, so no filter maintenance is required.

Common Troubleshooting: If interlock fails, check whether the mechanical interlock linkage is stuck or whether the electronic interlock electromagnetic lock and controller are functioning properly. If doors do not close properly, check whether sealing gaskets are deformed or hinges are loose. If electronic interlock type has no power, check power connection and fuse. If indicator lights do not illuminate, check whether bulbs or LEDs are damaged. If buzzer alarms continuously, check whether doors are fully closed or whether the alarm delay setting is appropriate.
